Getting started with Cinema 4d

Getting or renewing your Educational license

1. Go to Kivuto to get your free promo code

2. Once, you checked out your purchase, there will be a hyperlink which will direct you to the Maxon website to get the Educational License.

3. Insert your promo code on the left-hand side, and you will need to pay a service fee of $2.99 to get finally get your license.

4. Finally, In your C4D License Manager, click the refresh button on top left, and your new student licsense will be connected.

Sourcing tutorials

• How to use Cineversity tutorial library

• How to not get lost in sea of tutorials and find what you need.

Resources

Tutorials

Character Animation

• ​2D Character AnimationToon and cel shading, Siggraph 2016 Rewind - EJ Hassenfratz

Toon & cel shading

• ​Adding C4D to your 2D Workflow with Sketch and Toon, NAB 2015 Rewind - EJ Hassenfratz

• ​Toon FX​

• ​ Optimizing Sketch and Toon Renders, Siggraph 2015 Rewind - Brandon Parvini

• ​SXSW Gaming Titles with Cinema 4D, NAB 2016 Rewind - Jeremy Cox

Broadcast

• Siggraph 2017 Rewind - Jeremy Cox: Improvisational C4D in Production: Euro Cup coverage on ESPN​

Shortcuts

• ​https://www.3dfordesigners.com/cinema-4d-lite-keyboard-shortcuts​

• ​https://usermanual.wiki/maxon/ShortcutsR18ENGLISH.195277549/view​

Cam
    opt + LMB - rotate
    opt + RMB - scale
    opt + MMB - move

Viewport
    frame geometry - H
    frame selected object - o
Settings
    preferences - Cmd + E
    Project - Cmd + D
    Render - Cmd + B

Essential
    Commander - shift + C

Camera move

Banking

If you want to roll (bank) the camera, try holding 3 on your keyboard and roll the camera with your RIGHT mousebutton, alternatively right click on the rotate icon at the top of the viewport.

FAQs

Why is my screen rendering black [1]

• the camera is key framed to a position inside another object

• you didn’t add any lights and auto light is off in the render options

• you have disabled rendering in the layer manager

• you are looking at the alpha channel in the picture viewer

• you have hidden all your objects in the render (Red dot in OM)

• you have the wrong camera set as the render view

• your lights have shadows enabled but are behind or inside other objects

• Texturing and shading

  • linking of textures using Driver and Driven in shader causing an error

Split objects from polygon groups [1]

In polygon mode, double clicking any part of the mesh will select it and all the polygons connected to it. Alternatively you can select connected parts by selecting one polygon and doing U,W 'Select Connected'. Then you just have to right-click, choose split from the contextual menu, which creates a new polygon object containing your selection, then you have to press delete to remove those polys from the original model. Rinse and repeat for the other parts.

Team render

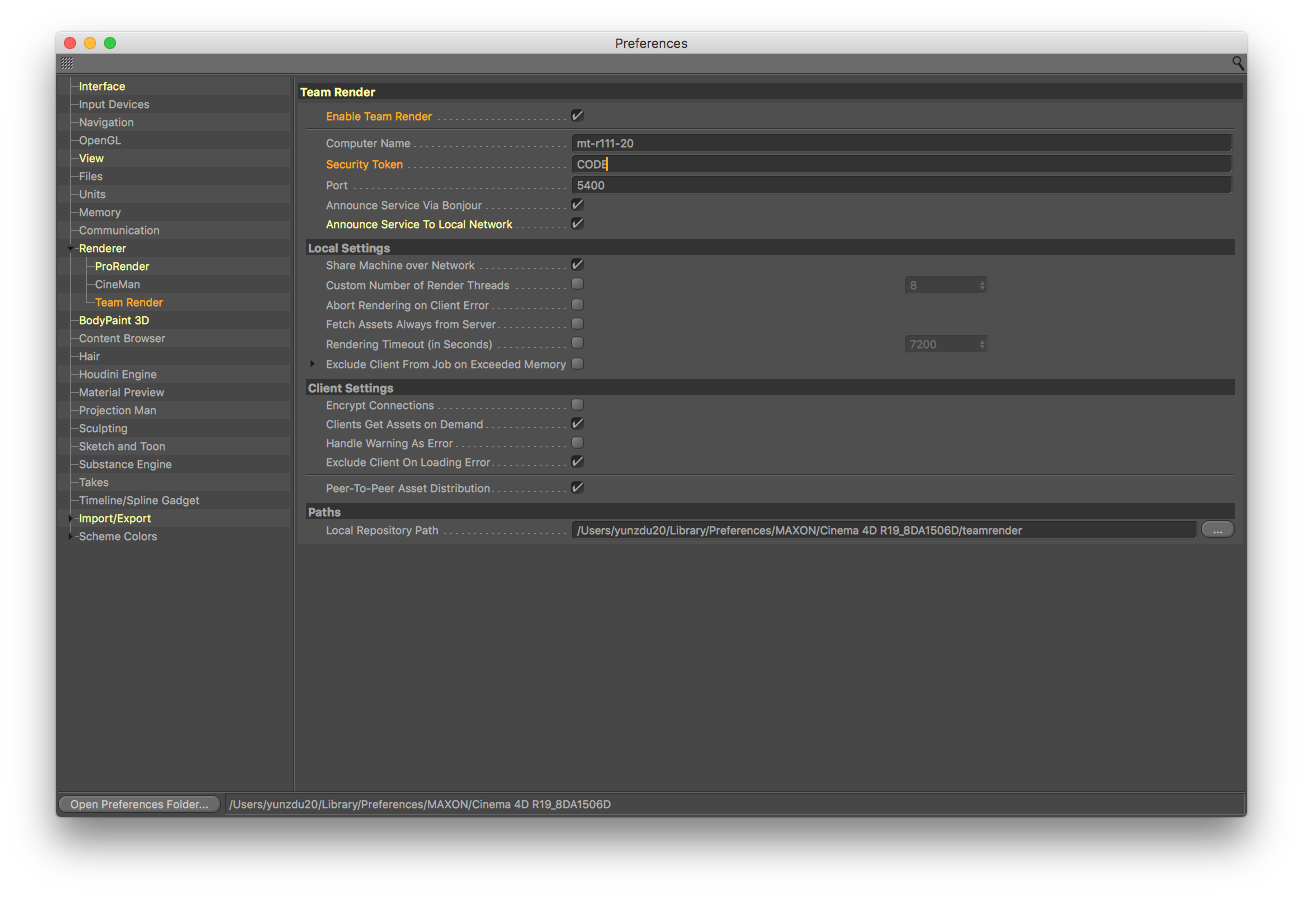

1. Activate Team Render on C4D

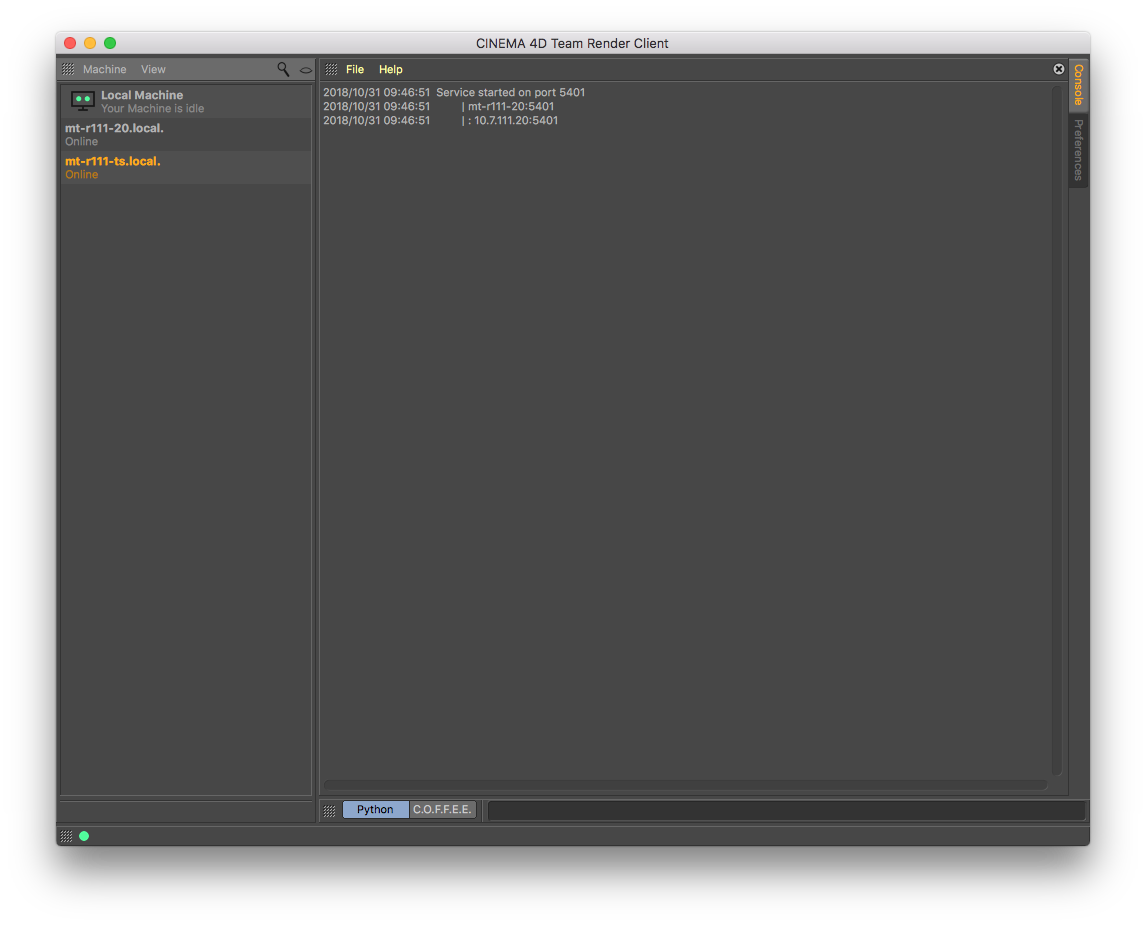

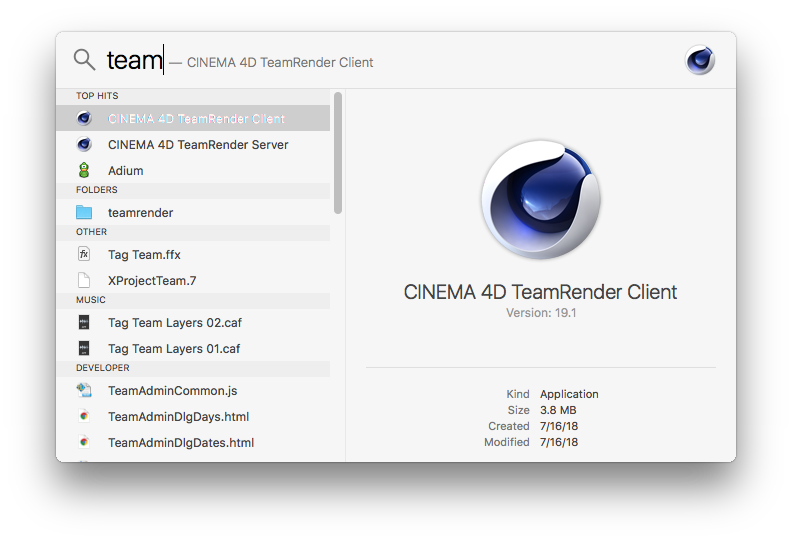

2. Turn on TeamRender Client

3. Get IP address of child computers

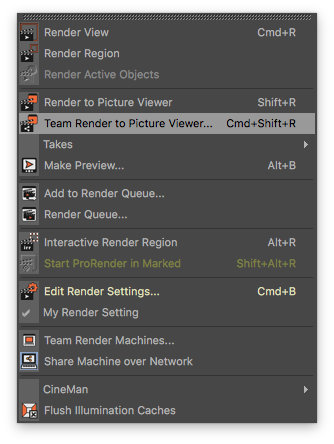

4. Team Render to Picture Viewer

​
